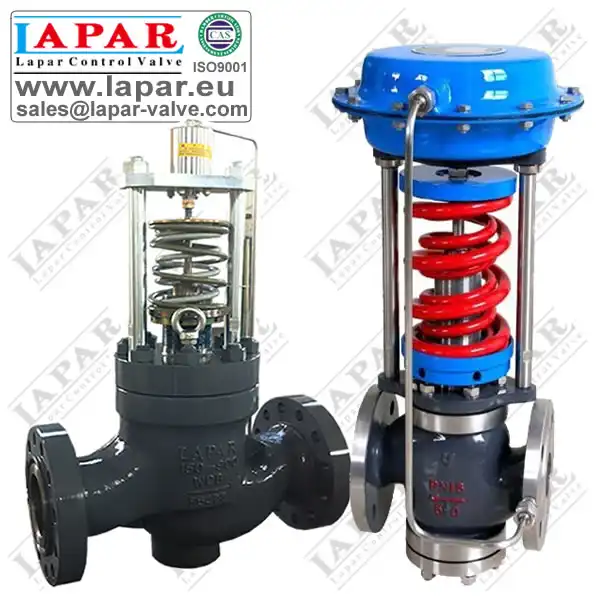

LPI11 Self regulating Pressure Control Valve, Pressure Control Valve (PCV), Pressure Regulating Valve (PRV)
Feature
LPI11 self-operated pressure control valve is composed of control valve, actuator and spring used for pressure controlling, it is suitable for controlling downstream pressure in the pipes of non-corrosive liquids, gases and streams, when the downstream pressure sises, the control valve is closed.
The main features are as follows:
- Can be upstream control or downstream control.
- No external energy, automatic adjustment.
- Simplifying equipment, energy conservation.
- Compact structure, fewer parts, light weight.
- Easy to install and operate.
- Regulating performance, accurate flow coefficient.
Parameter
| Actuator | Spring Return Diaphragm Actuator |
| Control | Self-operated |
| DN | 15~350mm |
| Pressure | PN1.6~6.4Mpa, ANI150~600Lbs, JIS10~40K |
| Temperature | -29~350°C |
| Flow characteristics | EQ%, Linear, Quick opening |
| Regulation accuracy | +/-4% |
| Leakage class | Metal Sealing: IV grade Soft Sealing: VI grade |
| Connection | Flange |
| Structure | Standard Type, Low temperature Bellows Seal Type, Cooling Type |
| Body & Cap Material | WCB, WCC, WC6, CF8, CF8M, CF3M |
| Stem Material | 304, 316, 316L 17~4PH |
| Spool Material | 304, 316, 316L, 17~4H, Surfacing Stellite |
| Packing Material | PTFE, RTFE, Flexible graphite |
| Medium | Gas, Liquid, Steam and etc |
| Option | Cooling Tank, Heat Sink, Extension, Travel Indicator |
| Remark | Commissioning has been completed in the factory |
