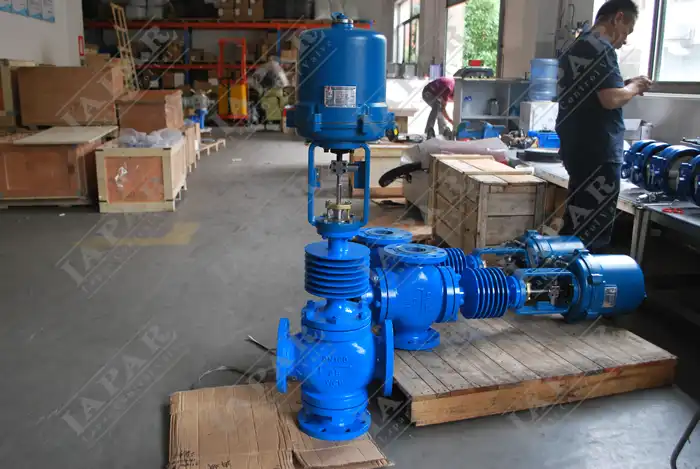

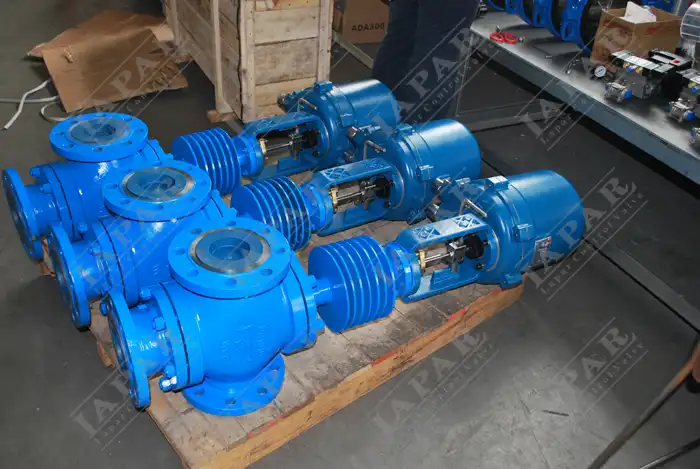

LPH14 3-way control valve with mixing or diverting type trim and pneumatic or electric actuator
Feature
- Compact structure, fewer parts, light weight
- Simple to wiring, easy to operate
- Regulating performance, accurate flow coefficient
- Small pressure loss, large flow capacity, low noise
- Small unbalanced force, allowing large pressure
Parameter
| Actuator | Pneumatic, Pneumatic+Handwheel |
| Control | On-off, Modulating, Inteligent |
| DN | 25~300mm |
| Pressure | PN1.6~25.0Mpa, ANI150~1500Lbs, JIS10~100K |
| Temperature | Std: -20~200°C, -40~250°C, -60~250°C Cooling type: -40~450°C, -60~450°C |
| Ambient temperature | -20~55°C |
| Flow characteristics | Straight line, Equal percentage |
| Inherent rangeability | 30:1 |
| Gas supply | 0.14~0.3Mpa |
| Input signal | 4~20MA, 1~5V |
| Output signal | 4~20MA, 1~5V |
| Connection | Flange |
| Structure | Standard Type, Bellows Seal Type, Cooling Type |
| Body & Cap Material | WCB, WCC, WC6, CF8, CF8M, CF3, CF3M |
| Stem Material | 304, 316, 316L 17~4PH |
| Spool Material | 304, 316, 316L, 17~4H, Surfacing Stellite |
| Packing Material | PTFE, RTFE, Flexible graphite |
| Medium | Gas, Water and Oil, etc |
| Option | Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve |
| Remark | Commissioning has been completed in the factory connected to the gas source and the input signal can be used |
