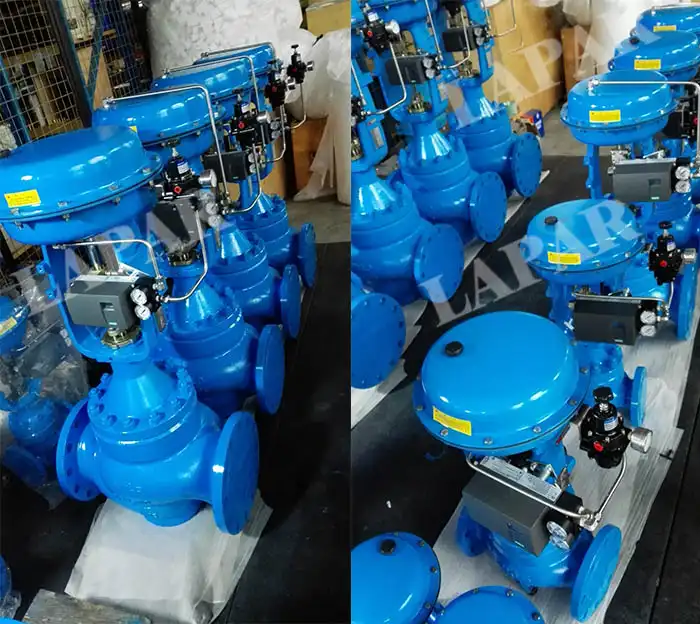

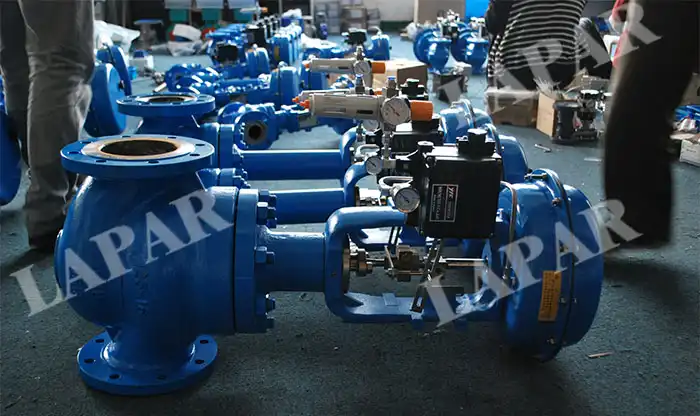

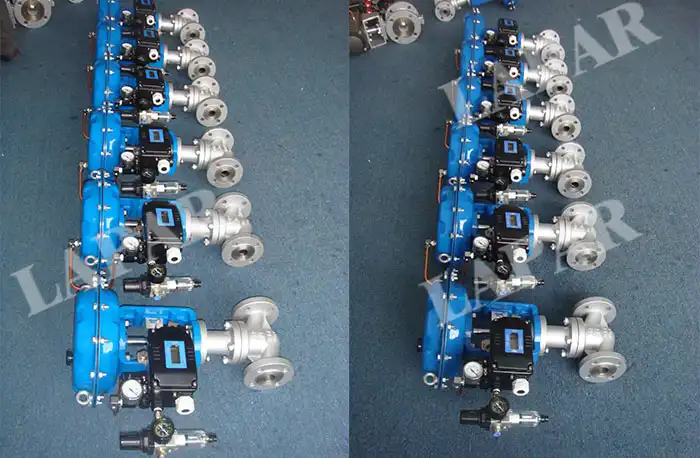

LPH13 Pneumatic Diaphragm Cage Guided Control Valve, Electric Cage Guided Control Valve
Feature
- Compact structure, fewer parts, light weight
- Wiring is simple, easy to operate
- Adjusted performance, small pressure loss, flow ability
- Able to apply a small amount of a certain viscosity and fiber medium
Parameter
| Actuator |
Pneumatic Diaphragm, Piston, Pneumatic+Handwheel |
| Control |
On-off, Modulating, Inteligent |
| DN |
20~250mm |
| Pressure |
PN1.6~25.0Mpa, ANI150~1500Lbs, JIS10~100K |
| Temperature |
Std: -20~200°C, -40~250°C, -60~250°C
Cooling type: -40~450°C, -60~450°C |
| Ambient temperature |
-20~55°C |
| Flow characteristics |
Straight line, Equal percentage |
| Inherent rangeability |
50:1 |
| Gas supply |
0.14~0.3Mpa |
| Input signal |
4~20MA, 1~5V |
| Output signal |
4~20MA, 1~5V |
| Connection |
Flange |
| Structure |
Standard Type, Bellows Seal Type, Cooling Type |
| Body & Cap Material |
WCB, WCC, WC6, CF8, CF8M, CF3, CF3M |
| Stem Material |
304, 316, 316L 17~4PH |
| Spool Material |
304, 316, 316L, 17~4H, Surfacing Stellite |
| Packing Material |
PTFE, RTFE, Flexible graphite |
| Medium |
Gas, Water and Oil, etc |
| Option |
Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve |
| Remark |
Commissioning has been completed in the factory
connected to the gas source and the input signal can be used |
