Fluorine Lined Butterfly Valve, Chemical Buttefly Valve
Design Feature
- Optional stainless steel body
- Applicable chemical medium
- Flange contection
- Disc in the hole under the friction surface using spherical design, torque is smaller, better sealing
Parameter
| Actuator |
Electric, Pneumatic, Handwheel, Handle |
| Control |
On-off, Modulating, Inteligent |
| DN |
50~600mm |
| Pressure |
1.0~1.6Mpa |
| Temperature |
PTFE: -29~150°C
FEP: -30~100°C |
| Connection |
Wafer |
| Structure |
A Type, LT Type |
| Body Material |
SS316, SS304, WCB, Casting Iron, Ductile Iron |
| Disc Material |
SS316, SS304, WCB, Casting Iron, Ductile Iron |
| Seat Material |
PTFE (F4), FEP (F6) |
| Medium |
Acids, Alkalis, Strong oxidizing agents |
| Option |
Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve |

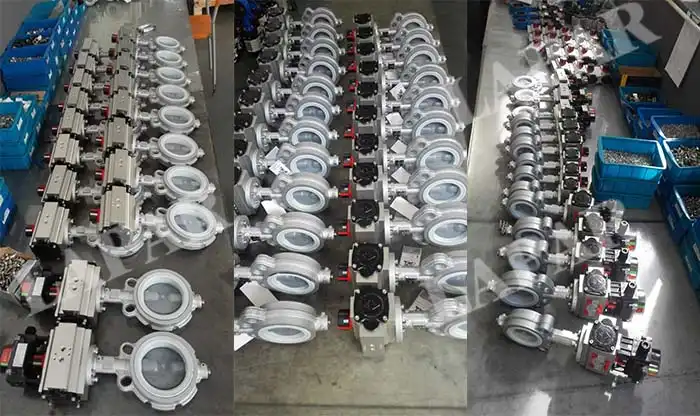

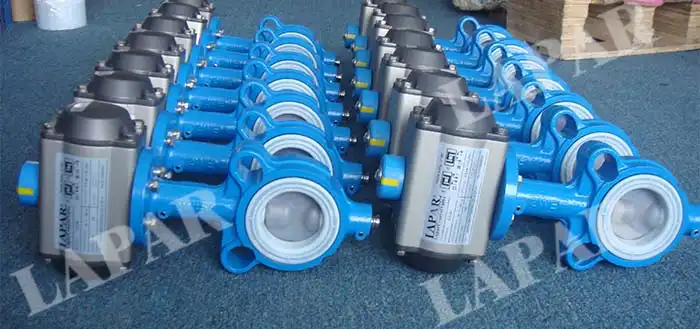

Pneumatic Fluorine Lined Butterfly Valve

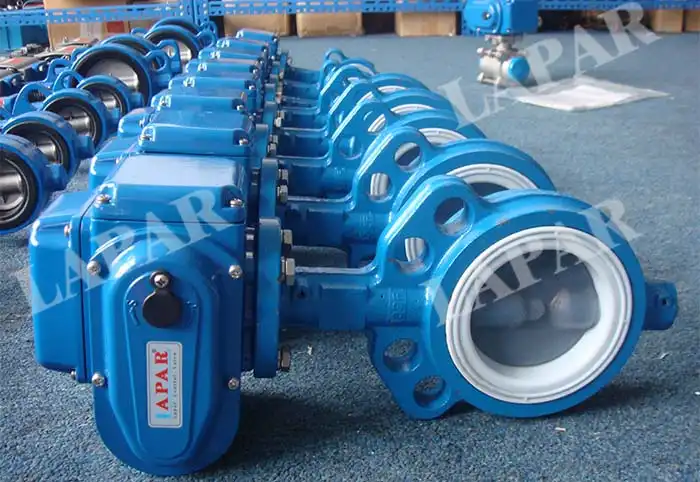

Electric Fluorine Lined Butterfly Valve
