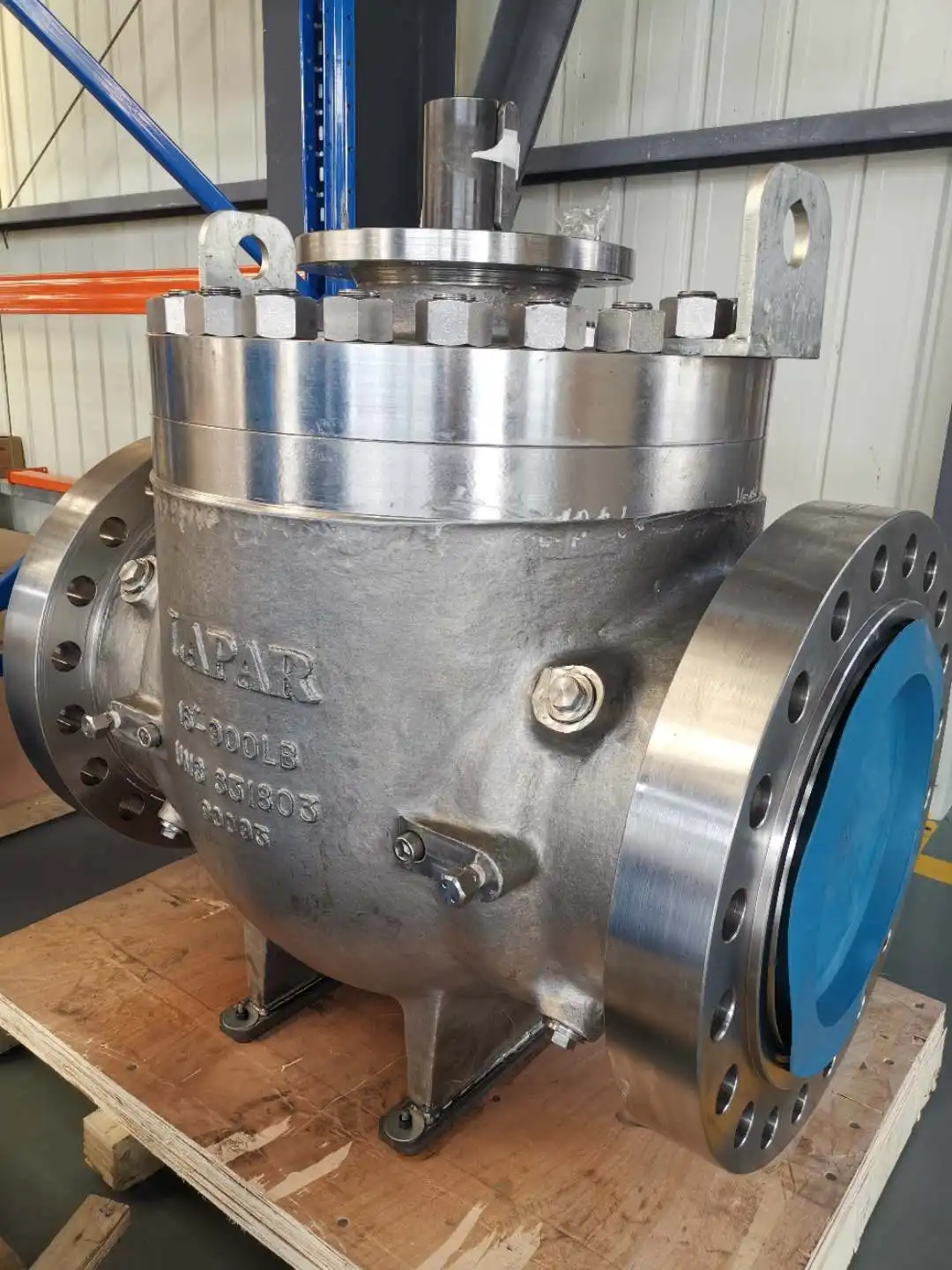

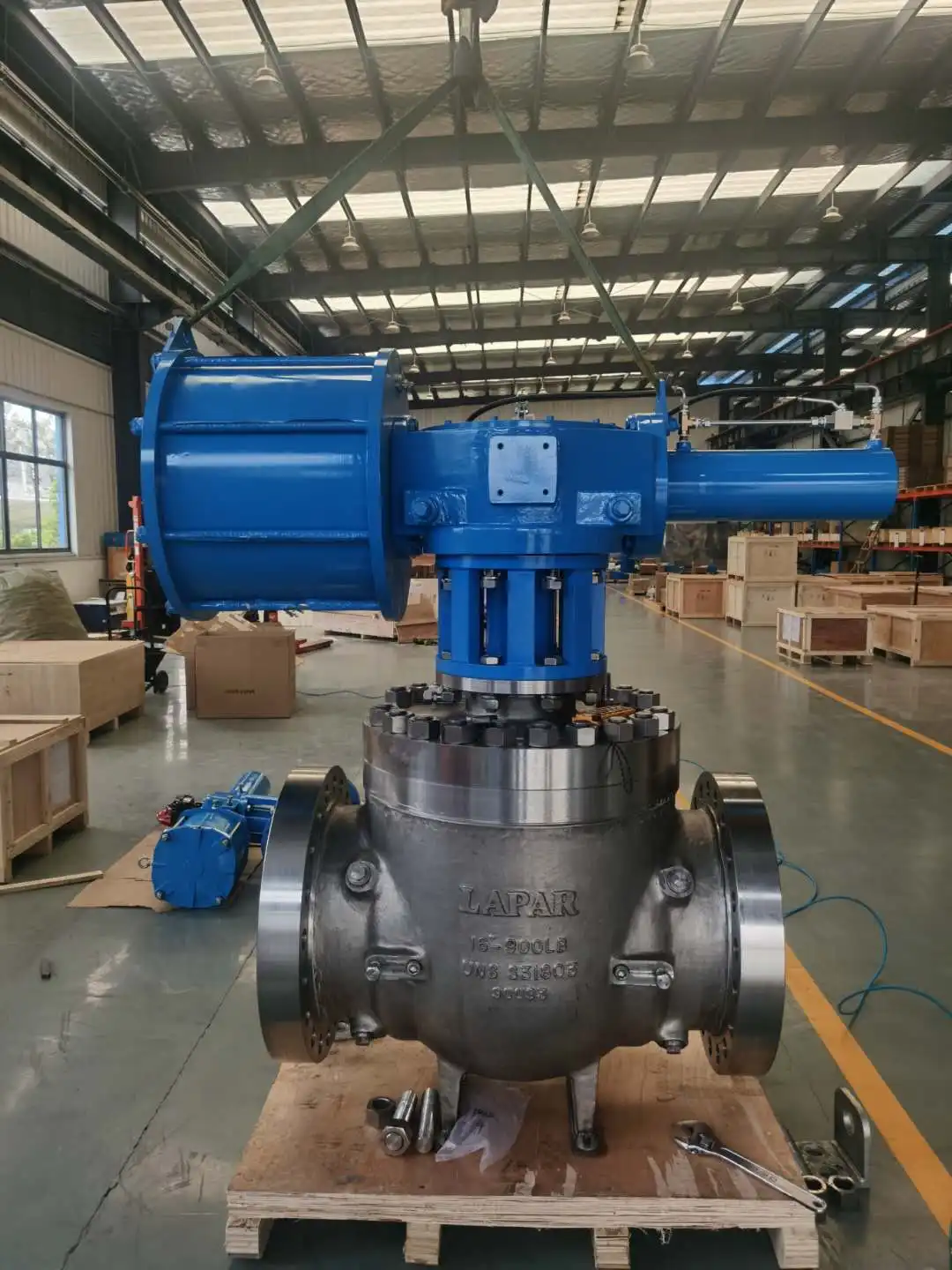

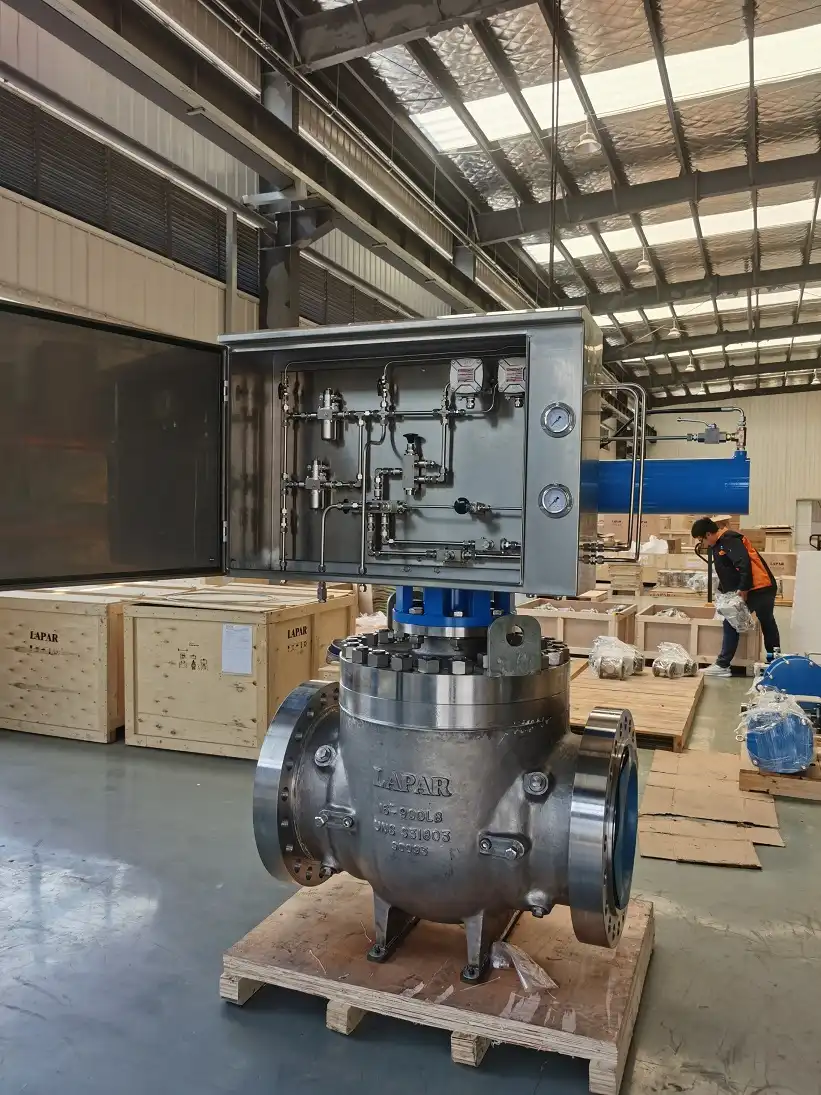

API 6D Top Entry Ball Valve, Soft Seat API Ball Valves
Design Feature
- API 6D standard
- Double block and bleed (DBB)
- Low operating torque
- Emergency sealing device for 6" and larger
- Sealant injection device
- Reliable seat sealing structure
- Single Sealing - Automaitic pressure relief in meddle cavity of valve
- Double sealing - Double piston
- Special structure of automatic - Presure relief towards upper stream
- Blow-out proof steam
- Corrosion resistance and sulfide stress resistance
- Extension stem
- NACE MR-01-75
Parameter
| Actuator |
Electric, Pneumatic, Electro-hydralic, Manual |
| Control |
On-off, Modulating, Inteligent |
| DN |
2"~36" |
| Pressure |
ANSI CL150~CL2500 |
| Temperature |
NYLON, DEVLON: <80°C
PTFE: <150°C
PEEK, PPL: <250°C |
| Connection |
Flange, Weld, Thread |
| Structure |
2-pieces or 3-pieces Type |
| Body Material |
SS316L, SS316, SS304, SS304L, WCB, CE3MN, etc |
| Ball Material |
SS316L, SS316, SS304L, CE3MN, etc |
| Sealing Material |
Nylon, Devlon, PTFE, PEEK |
| Medium |
Gas, Water and Oil, etc |
| Option |
Limit Switch, Positioner, Solenoid Valve, Pressure-relief Valve |
Pneumatic Flange Ball Valves
