LPZ11 Solenoid Valve, 5/2 way solenoid valve, 3/2 way solenoid valve
Lapar solenoid valve applies the requirements for NAMUR and in-line(pipe)connection and can be adapted for 3/2 NC or 5/2 functions for controlling double-acting and single-acting pneumatic actuators by a adapter.
Feature
- The plate joint type is meet NAMUR standard, the pipe joint type is meet ISO5599-1 standard.
- Using customized O-ring, so don't need to add lube oil additionally.

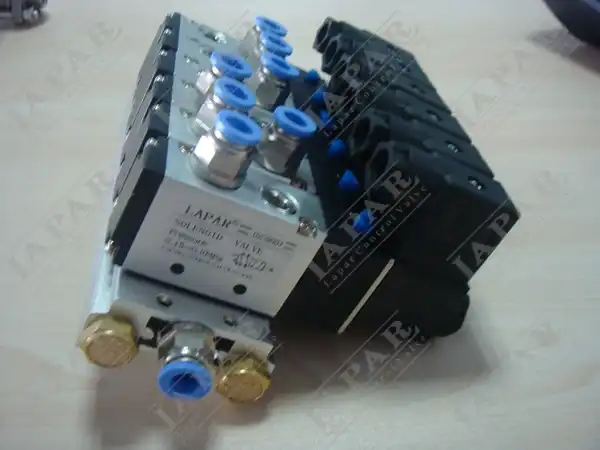

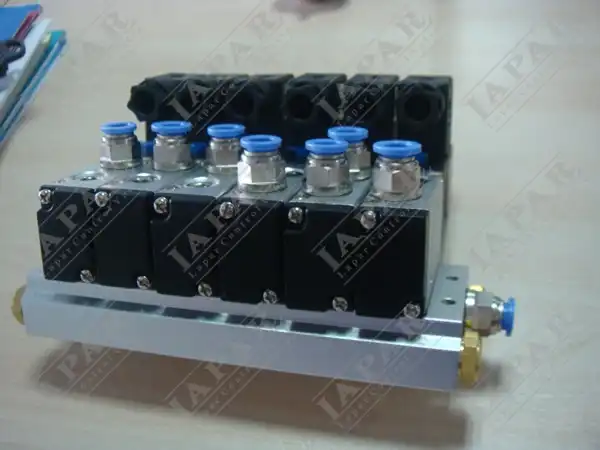

- The pipe joint type can integrate one or more valve group with the same series solenoid valves.
Parameter
| Installation standard | NAMUR / VDI / VD3845 |
| Excitation Time | 40ms |
| Voltage Range | ±10% |
| Power Consumption | AC:5.0VA~9.0VA DC:2.5W~6.5W |
| Ambient Temperature | -20～+60℃ |
| Enclosure Class | IP66 |
| Structure | Plate Connection Pipe Connection |
| Insulation Class | F Class |
| Actinge Type | Inner Guide Type |
| Cable entries | M20x1.5 |
| Medium | Fittered dry compressed air |
| Max.Frequency | 5 Times/Sec |
| Working Pressure | 0.15~0.85MPa |
| Body Material | ADC12, SS316 |
